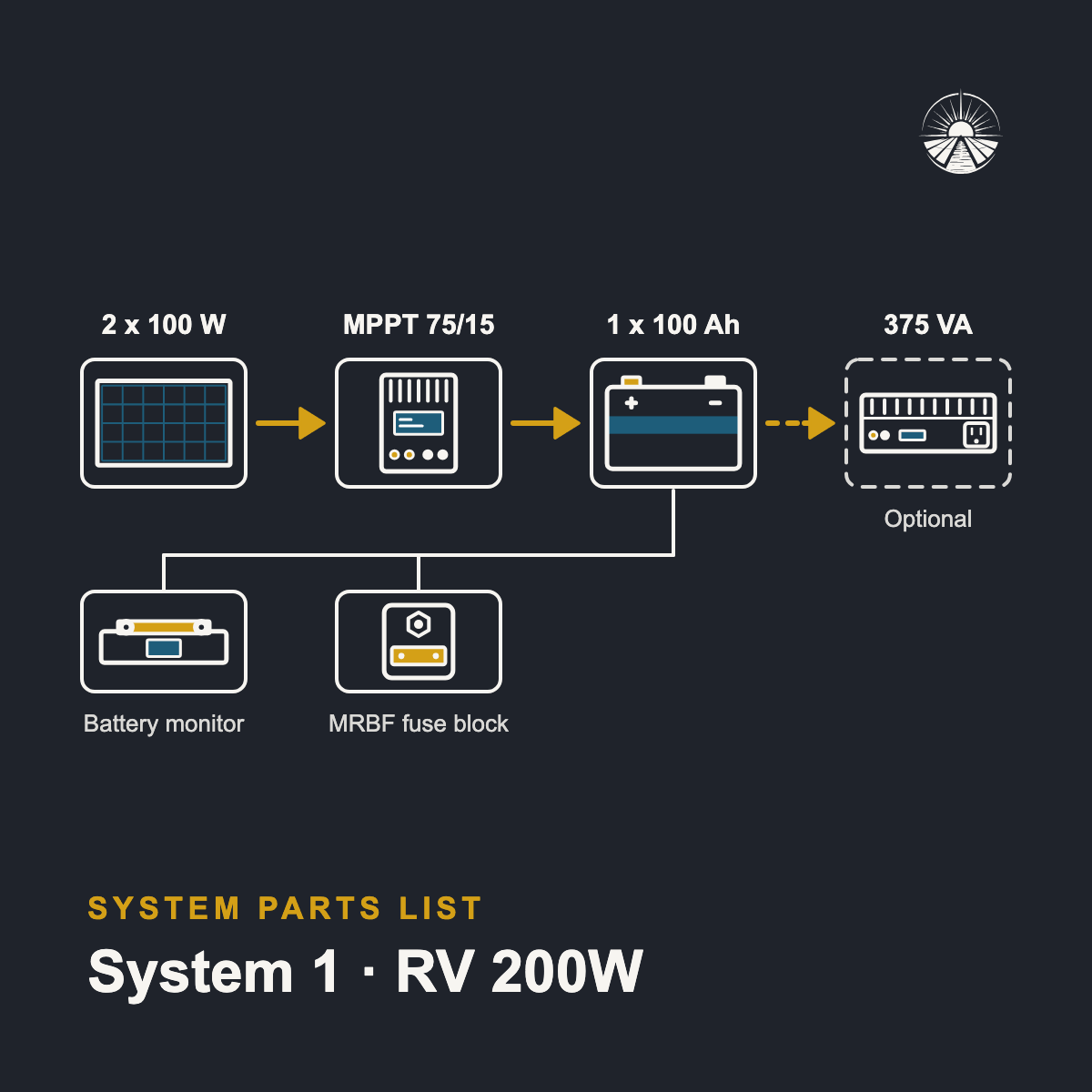

A starter RV system built around 200 W of solar and one 12 V, 100 Ah lithium battery.
Parts
- 1 x Zamp Solar Obsidian 200W solar panel kit (2 x 100W)
- 1 x Victron SmartSolar MPPT 75/15 charge controller
- 1 x Battle Born 100Ah 12V LiFePO4 battery
- 1 x Victron Phoenix Inverter 12/375 120V NEMA 5-15R (optional)
- 1 x Victron SmartShunt 500A/50mV battery monitor
- 1 x Blue Sea 5191 MRBF terminal fuse block, 30 to 300A
What it covers
Panel side: 200 W of panels, inside the controller’s 75 V and 15 A limits. AC side: the inverter is optional. If you add it, it supplies up to 300 W at 120 V (700 W peak), enough for items such as a laptop charger or a small TV. Check the watts on each device’s label.
The parts list is checked against manufacturer ratings. It is not an engineered design, a permitted installation or a promise of runtime. Cable, mounts and the fuses that go in the fuse blocks are not in this list.
