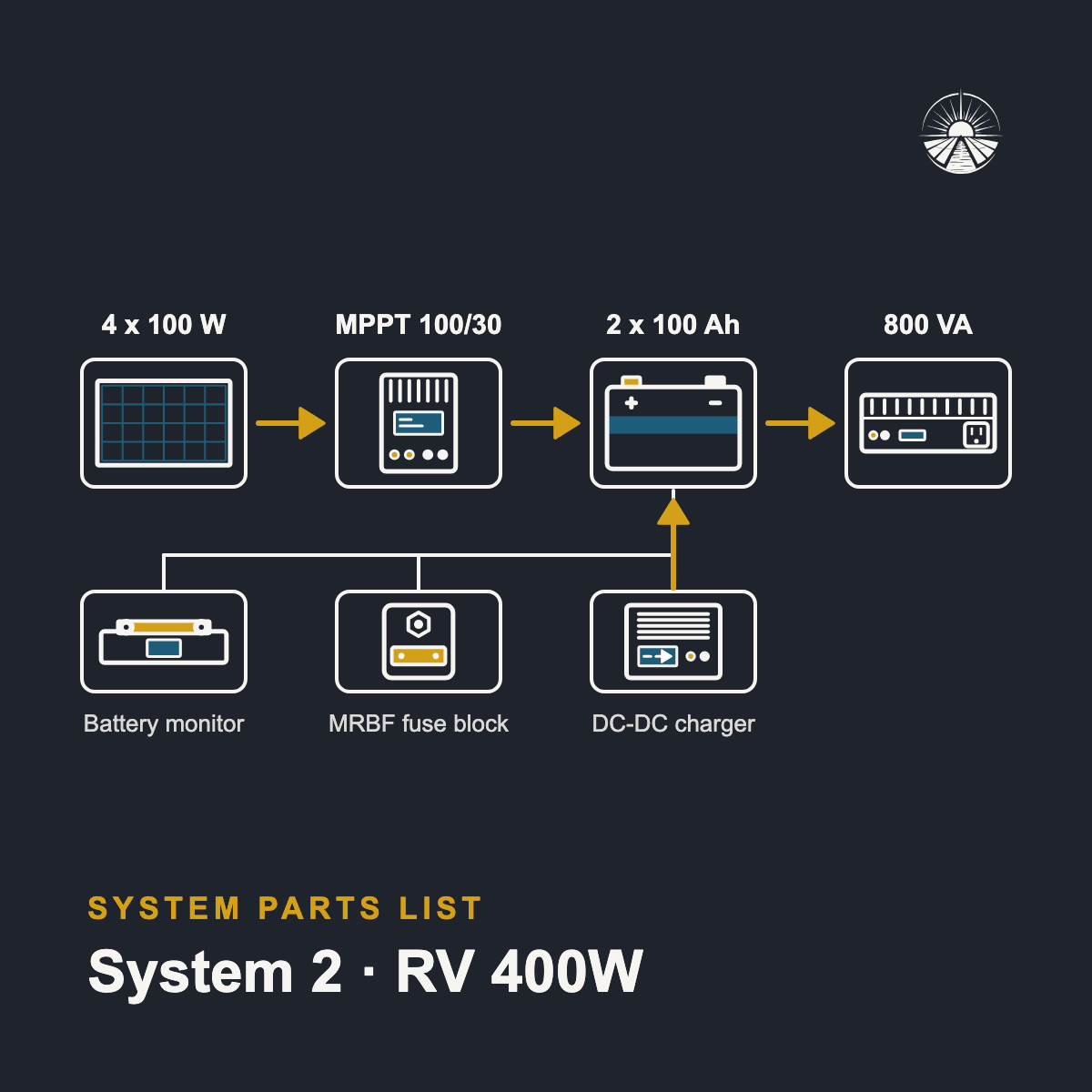

A mid-size RV system built around 400 W of solar, two 12 V, 100 Ah lithium batteries and a DC-DC charger so the vehicle can charge the batteries while driving.
Parts
- 2 x Zamp Solar Obsidian 200W solar panel kit (2 x 100W)
- 1 x Victron SmartSolar MPPT 100/30 charge controller
- 2 x Battle Born 100Ah 12V LiFePO4 battery
- 1 x Victron Phoenix Inverter 12/800 120V NEMA 5-15R
- 1 x Victron Orion-Tr Smart 12/12-30 non-isolated DC-DC charger
- 1 x Victron SmartShunt 500A/50mV battery monitor
- 1 x Blue Sea 5191 MRBF terminal fuse block, 30 to 300A
What it covers
Panel side: four 100 W panels wired two in series, two strings in parallel. Panel voltage stays under the controller’s 100 V limit with room left for cold mornings, and 400 W is under the controller’s 440 W rating at 12 V. AC side: the inverter supplies 800 VA, or 650 W at 25 C (1,500 W peak). Check the watts on each device’s label.
The parts list is checked against manufacturer ratings. It is not an engineered design, a permitted installation or a promise of runtime. Cable, mounts and the fuses that go in the fuse blocks are not in this list.
