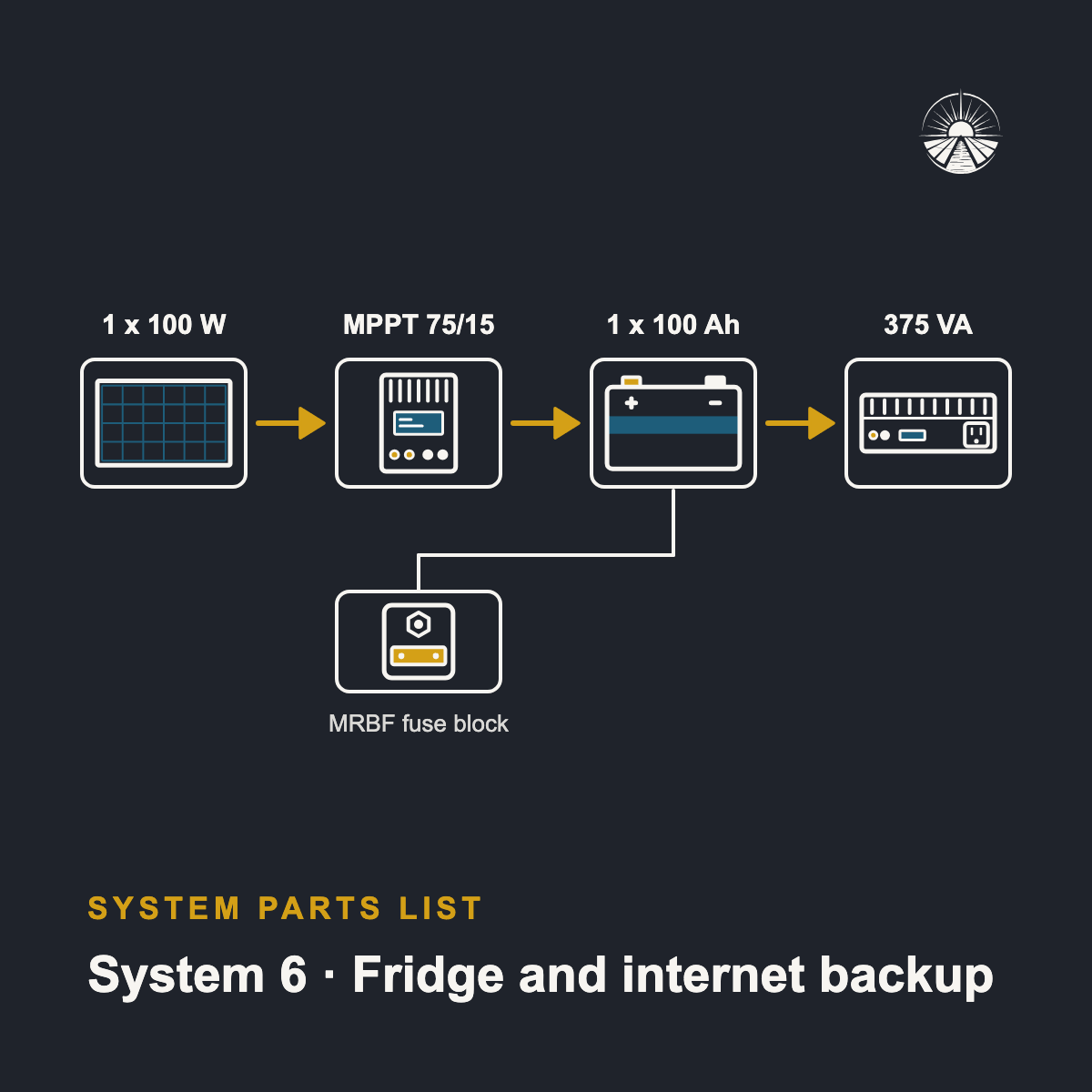

A small system built around one 100 W panel, one 12 V, 100 Ah lithium battery and a small inverter for light loads.
Parts
- 1 x Zamp Solar Obsidian 100W solar panel kit
- 1 x Victron SmartSolar MPPT 75/15 charge controller
- 1 x Battle Born 100Ah 12V LiFePO4 battery
- 1 x Victron Phoenix Inverter 12/375 120V NEMA 5-15R
- 1 x Blue Sea 5191 MRBF terminal fuse block, 30 to 300A
What it covers
Panel side: one 100 W panel, inside the controller’s 75 V and 15 A limits. AC side: the inverter supplies 375 VA, or 300 W at 25 C (700 W peak). Check your fridge’s running watts and start-up surge, and your router’s watts, against those ratings. We have not sized this list for any particular fridge.
The parts list is checked against manufacturer ratings. It is not an engineered design, a permitted installation or a promise of runtime. Cable, mounts and the fuses that go in the fuse blocks are not in this list.
